.5 GPM to 12 GPM
30 GPH to 720 GPH
INFINITY ULTRAVIOLET LIQUID SANITIZERS
 |
The INFINITY Ultraviolet Liquid Disinfection System is the result of an
intensive development effort by some of the most experienced engineers in
the ultraviolet disinfection industry. Experience has shown that standard
ultraviolet water purifier designs are ineffective for fluids with a high
ultraviolet absorbance, and it became clear that a specially designed
disinfection system was required to allow a convenient and effective
treatment of these more difficult fluids. As a result of these efforts, the
INFINITY Liquid Disinfection System was designed, and is capable of
delivering outstanding results, even where other UV liquid disinfection systems fail.
Click HERE to view list of Microorganisms disinfected by UV
Examples of liquids that can be successfully disinfected include;
- Liquid sugars and sweeteners
- Process water
- Water based lubricants
- Fruit drinks and juices.

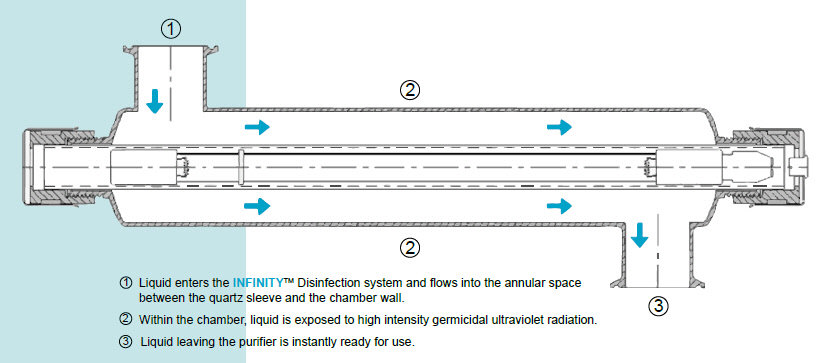

The liquid enters the INFINITY Liquid Disinfection
System and flows into the annular space between the quartz sleeve and the
chamber wall. Within the chamber, liquid is exposed to high intensity
germicidal ultraviolet radiation. Liquid leaving the purifier is instantly
ready for use -
Click image below to view as larger image of UV disinfection operation.
 |
|
STER-L-RAY Instant Start Germicidal Ultraviolet Lamps - Lamps are
high quality ultraviolet lamps rated for 10,000 hours of continuous use.
Lamp life is governed by the life of the filaments and is affected by the
frequency of starting. STER-L-RAY lamps are well suited for a variety of air
and water purification applications, which require high ultraviolet
intensity.
Click HERE for UV Water Disinfection FAQs

|
